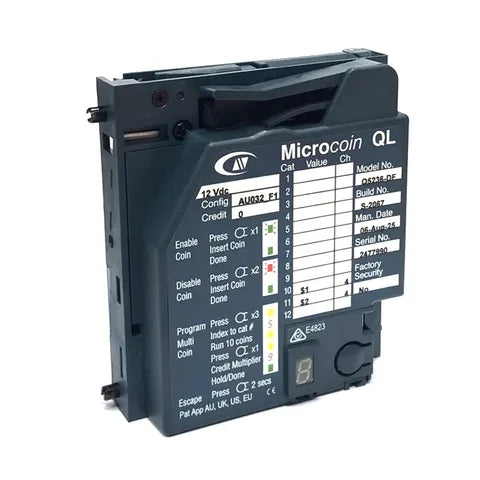

Microcin QL Coin Mech - Used

Microsystems Controls / Microcoin QL
A long-standing industry standard and market leader in electronic coin mechanisms for arcade equipment and a wide range of coin-operated machines. These are used and may contain minor scuffs/ marks.

The Microcoin QL is a high-speed, multi-coin validator capable of processing up to 10 coins per second. It comes equipped with powerful features such as Quick Learn onboard programming and can be set to recognize up to 12 different coins or tokens without slowing down performance. With comprehensive software support tools, the QL offers a modern and maintainable solution suitable for in-house servicing.

Please note: To use the Quick Learn On-Board Programming functions, the QL must be supplied with this option configured at purchase. If you wish to make these adjustments yourself via PC, a separate programming interface is required and sold separately.

The Microcoin QL can be paired with its own illuminated faceplate, or installed directly into an industry-standard top-loading, bottom-rejecting coin door.
Faceplate not included and must be purchased separately.

Depending on your cabinet setup, installation may also require an Interface PCB and 10-way ribbon cable, available separately.

Game On Entertainment can configure your coin mech to suit your exact requirements, including adding or removing accepted coins and programming tokens (please note: tokens must be supplied or mailed to us as physical samples).

It’s important that you know how your mech needs to be set up if you’re unable to program it yourself. If the coin, token, or channel configuration doesn’t match your specific machine, the mech may not operate as intended.

Our team is happy to guide you through what you need so we can ensure everything is programmed correctly.
If you’d like help or want to discuss your setup, feel free to call us anytime on 1300 177 414.

If programming adjustments are needed after the unit has been supplied, a reprogramming service fee applies.

Technical Specifications

• Coin Acceptance Rate: Up to 10 coins/sec

• Coin Diameter: 17–30 mm

• Coin Thickness: 1.2–3.3 mm

• Coin Output: 6 parallel NPN open collector outputs (200 mA rated)

• Programmable Pulse Width (requires PC programming interface)

• Credit: NPN open collector — credit/accumulator/totaliser

• Interface Modes: Pulse, Parallel, ccTalk, MDB

• Front Mounting Options: Illuminated front-loading, tray-rejecting faceplate

• Power: 12 VDC ±10%

• Operating Temperature: 0–55°C

• Storage Temperature: –10–65°C, humidity up to 90% non-condensing

• Programming: QLTalk PC-based programming & diagnostics (interface sold separately)

Details

• Weight: 0.2 kg

• Cubic: 0.0006 m³

• Item Dimensions: 10 × 10 × 6 cm

• Assembled Dimensions: Width × Depth × Height (cm)
